LMS C-Shape Linear Strip Roll Forming Machine
Revolutionizing Wind-Resistant Ceiling Systems with Precision-Engineered Profiles
Product Overview

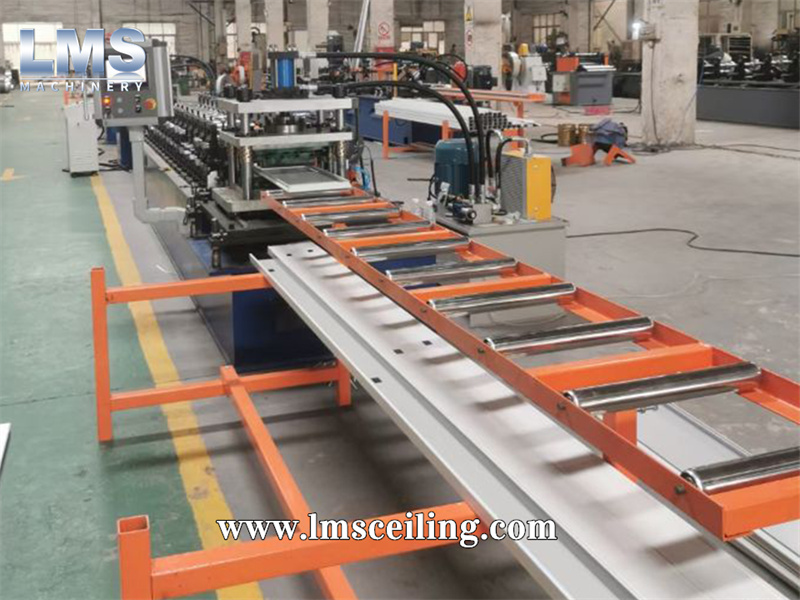

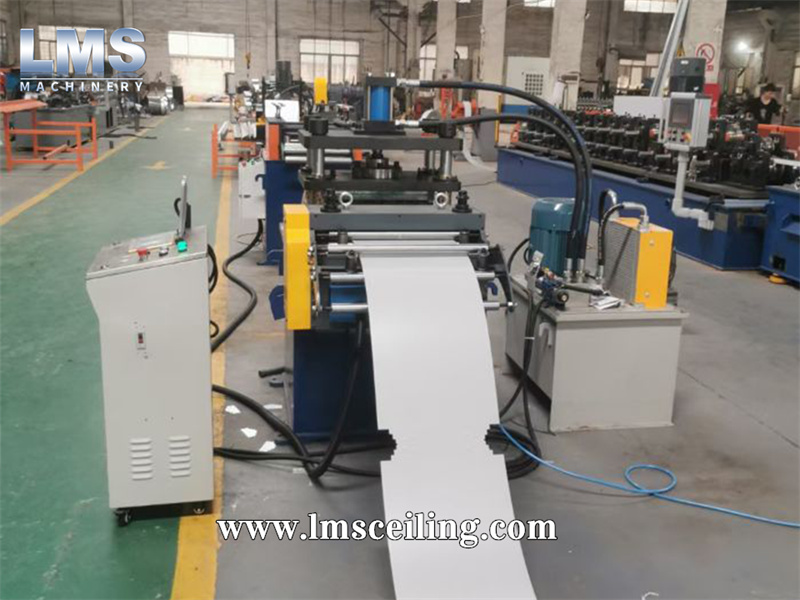

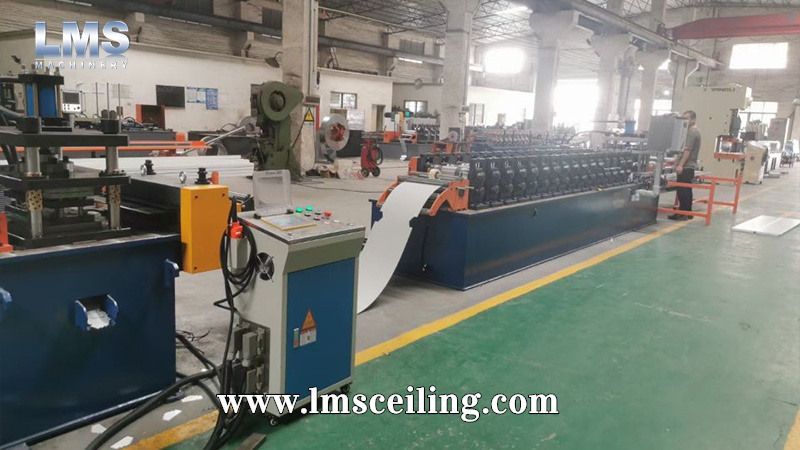

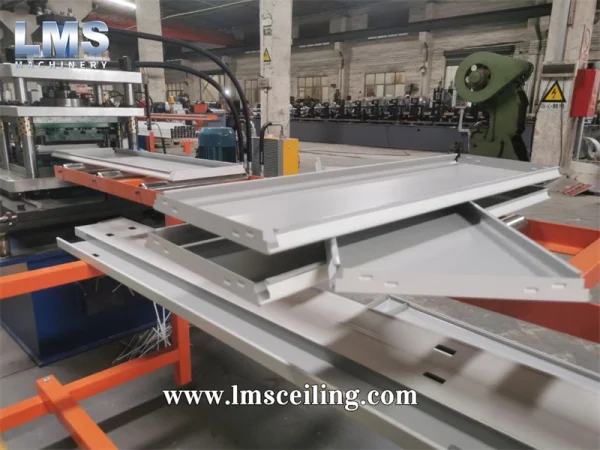

The LMS C-Shape Linear Strip Roll Forming Machine is an automated production line dedicated to manufacturing high-strength C-shape wind clips – the critical component for securing suspended linear ceilings against wind uplift in open-air structures. By converting galvanized steel or aluminum coils into uniform C-profile strips (20–300mm customizable widths), it ensures architectural resilience in stadiums, airports, and coastal buildings.
⚙️ Technical Highlights
Parameter
Specification
Material
0.6–1.2mm Galv. Steel / Aluminum (AZ150+)
Profile Type
C-Shape Wind Clips (EN 13964 compliant)
Production Speed
12–18 m/min (servo-controlled)
Tolerance
±0.3mm (laser-calibrated)
Control System
Siemens PLC + 10″ HMI (Auto-Length/Punch)
Tooling Stations
18 Rolls (Hardened D2 Steel, 800K+ meters)
Core Advantages
1. Extreme Wind Uplift Resistance
  • Forms interlocking C-clips with 45° angled flanges, achieving ≥3.5 kPa wind load resistance (tested per ASTM E330).
  • Precision notching creates anti-vibration teeth (2–5 teeth/meter) to prevent clip disengagement.
2. All-Environment Durability
  • Supports pre-coated coils (PVDF/Polyester) for salt-spray resistance (>1,000 hrs per ASTM B117).
  • Optional in-line polymer padding module for noise reduction (NRC 0.7).
3. Zero-Waste Efficiency
  • Servo-driven punching + flying cut reduces material loss to <2%.
  • Quick-change tooling switches profiles in 8 minutes (C20↔C300).
Application-Specific Solutions
Scenario
Machine Adaptation
Stadiums/Arenas
Extra-long clip production (6m strips)
Coastal Buildings
316L stainless steel compatibility
Seismic Zones
Dual-thickness forming (0.8+1.0mm)
 Why Contractors Choose This Line?
“Eliminate onsite welding – produce wind clips with consistent grip force (≥200N per clip) and 40% faster installation.”
  • For Architects: Achieve seamless visual joints (0.5mm gap tolerance).
  • For Installers: Pre-punched screw holes align perfectly with T-grids.
Value-Added Services:
  • On-site training + 24/7 remote technical support
  • Custom embossing (brand logos/part numbers)
